View a component asset report for a project file

You can open a project and select a component to create an asset report. In this report, assets include all of the component's references, including links to other topics, content references to elements in other topics, file and web links, and inserted images. If the component is a map, you can also see references to other maps.

You cannot create a Component asset report for the following types:

  • Binary component, such as a PDF file or image
  • Workflows listed in the Components browser in the Workflows folder
  • SKOS (Simple Knowledge Organization System) files

Tips and tricks

  • The Component asset report option is also available when working in the Components browser. View a component asset report for one component
  • You can also create multiple project reports at once by selecting multiple project maps. View a component asset report for multiple project components
  • The report contains the following information:

    If a component has been sent to translation, you see:

    • In Language, the target language that the source was translated into
    • In Update Date, the last date when it was sent to translation
    • In Last Translation Date, the last date when it was sent to translation

To view a component asset report for one project component:

  1. Click Projects.
  2. On the Project Management tab, find the project that includes the component you want to create a report for.
  3. To open project details, select the project and double-click it.
    You can also open a project by:
    • Right-clicking the project and then selecting Open.
    • Clicking the Options menu and then selecting Open.
  4. In the Content pane, do one of the following:
    • Use a menu.

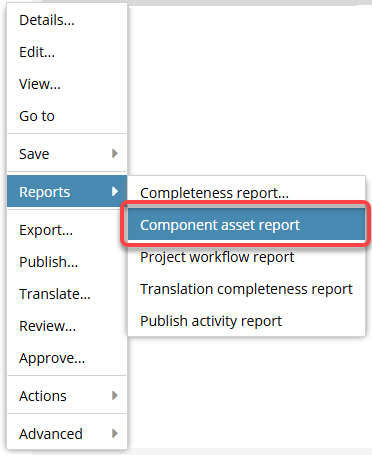

      1. In the component's row, right-click or select the Options menu.
      2. Select Reports, and then Component asset report.

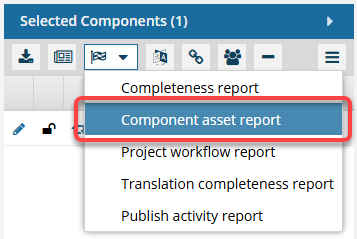

    • Use the Selected Components panel.

      1. Select the checkbox for the component you want to run a report on.
      2. On the Selected Components panel, select Reports, and then Component asset report.
  5. On the Convert Time screen, select one of the following options:

    • Yes. Changes all dates and times in the report to reflect the Time Zone specified in your Profile. (To change your Time Zone, follow the steps in: Select your time zone.)
    • No. Displays all dates based on the Time Zone that your Inspire server instance is located in.
    Results: You see a notification that the report is being generated.
    You see another notification when the report has been created.
  6. In the top menu, click Notification TopMenu Notifications.

    You do not receive a copy of the report in email or Slack and it cannot be configured.

  7. From the list of notifications, select the one with a Subject of Component Asset Report.

    When you run a report on a single component, Inspire adds the component name to the report's CSV file name.

  8. To download the report, click the link containing the name of the CSV file.
  9. On your local computer, open the report to see the details.

    Results: The first eight columns of the spreadsheet provide details that identify the asset used in the component:

    The first row always contains the details of the component or map that was selected as the source of the report.

    • ID. A sequence of numbers generated by Inspire to uniquely identify a component.
    • ComponentMapName. The name of the component or map that was selected as the source of the report.
    • Name. The name of the component or map that is referenced.
    • FileName. The display name of the component and its GUID.
    • Type. The classification of the file that identifies its content (DITA, DocBook, Concept, Task, Binary, etc) and if it can be edited (For example: DITA=yes, Binary=No, etc.).
    • State. An optional identifier that can be used to signify if the file's contents are ready to be published by approving or signing it.
    • Path. The location of where the asset is stored in Inspire.
    • Language. A pair of codes that identifies the region and country where the content can be read natively. (If the map has not been translated you see en_US.)

    The last eight columns of the report provide information about when and why the asset was last updated :

    • CreatedDate. The date when the file was first added to Inspire.
    • CreatedBy. The name of the user account that saved the first version of the file.
    • UpdatedBy. The name of the user account that most recently saved an updated version of the file.
    • Label. An optional word or phrase that can be added on the Create snapshot and Save as Branch screens.
    • Comment. An optional word or phrase that can be added when a file is included in a review and the user resolving the review enters a comment on the Review Approval screen.
    • LastReviewedDate. The most recent date that the content in the file was included in a review and the review was completed.
    • LastApprovedDate. The most recent date that the file was approved by an Inspire user.
    • LastTranslatedDate. The most recent date that the content in the file was included in a translation job and the translated file was returned to Inspire.
    • LastPublishedDate. The most recent date that the file was transformed by Inspire into another file format.
