View a branch report for selected components

You can create a component branch from an existing component and add the branch to a specific component folder. When you branch a component, you can choose if the branch maintains all, some, or no content referenced in the source component. To see a report on the relationships a component has with other components, if it's the source of a branch, is part of a branch, or is both, and find the location of all components in the branch, you can generate and view a branch report.

Tips and tricks

Multiple notifications
  • You see a separate notification for each component you select.
  • You see a notification when the report is complete.

Multiple reports

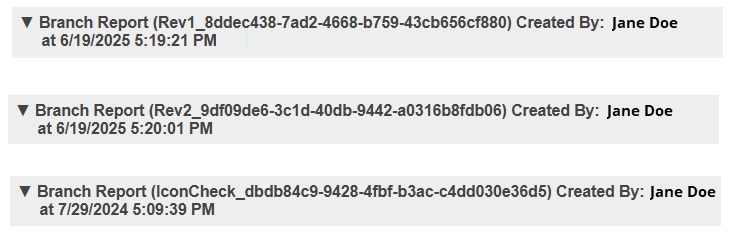

  • You get a separate report for each component you select.
  • You can view your report from the notification telling you the report is complete.

For more information about branching components, read Branch components.

Only need a report for one component?

  • You can also run a report on just one component.
  • You can use the right-click menu on the component (or use the Options menu), select Reports, and then select Branch report.
  • Follow the steps in View a branch report for one component.

To view a branch report for multiple components:

  1. Click Components_TopMenuOpt Components.
  2. In the Folders pane, navigate to the folder where you've saved the components.
  3. In the Components pane, find the components you want to check.
  4. In the list, select the check boxes for the branched components you want included in the reports.

    In the Components browser, you can make sure the component is branched by looking for an icon corresponding to their place in the branch.

    • Black is the source component for a branch
    • Green was branched because a source component referenced it
    • Orange is both the source of one branch and included in another branch because a different source component referenced it

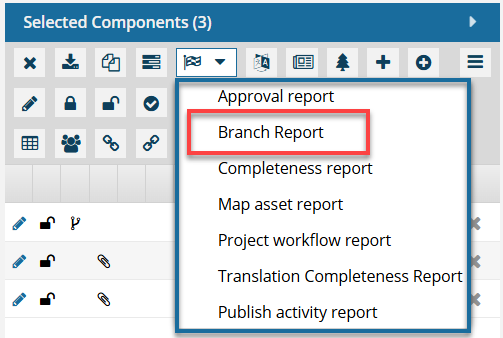

  5. On the Selected Components pane, select the Reports menu, and then select Branch Report.

    If you only need a report for one component, you can use the right-click menu on the component (or use the Options menu), select Reports, and then select Branch report.

    Results:

    • You see a notification for each component that the report process has started.

    • The components remain on the Selected Components panel.
    • You see a notification for each component that the report process has completed.

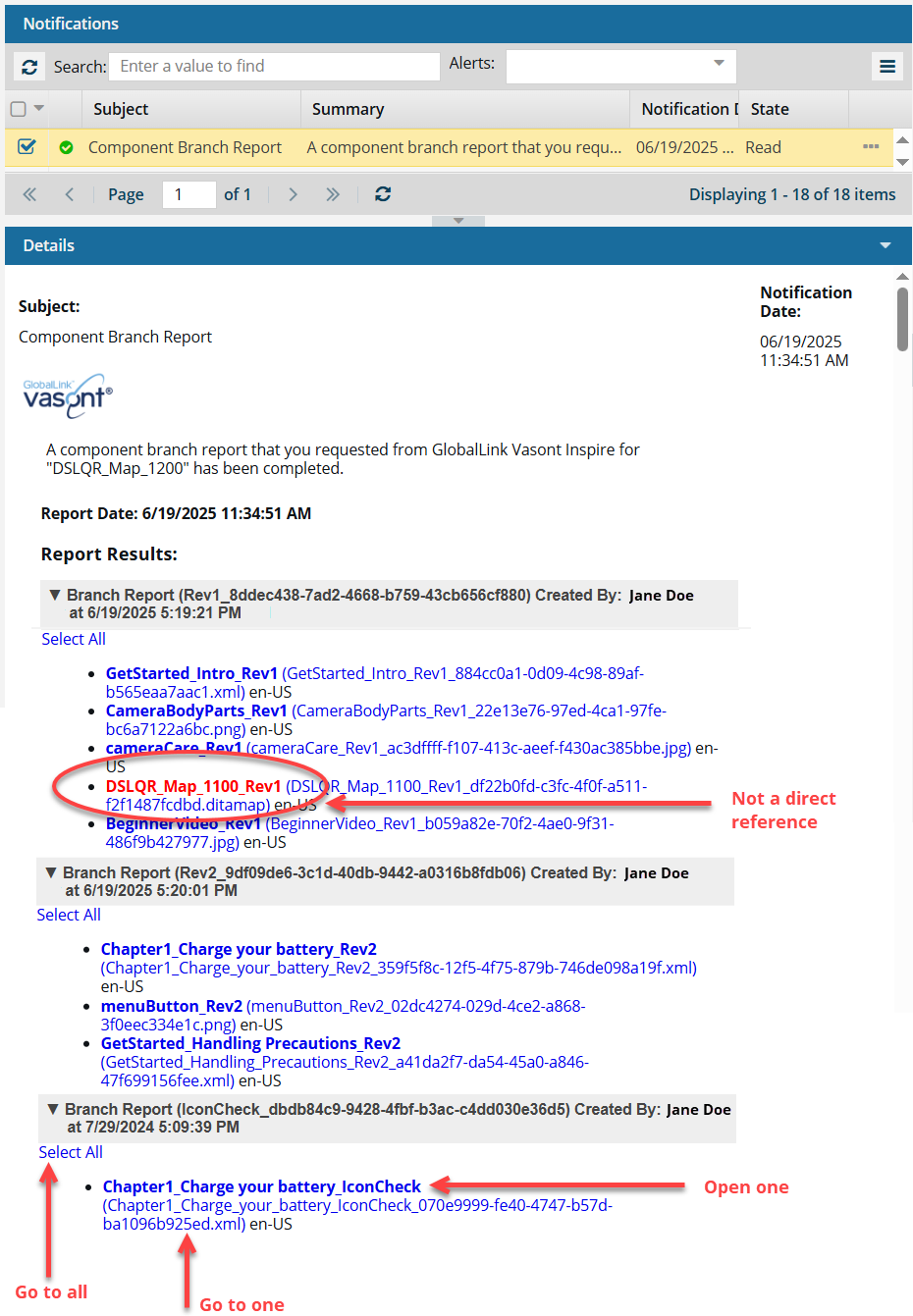

    • On the Notifications tab, you can see the report details.

      If the component has branch relationships, they are listed. If it doesn't, the report will display No branch relationships were found for {Component Name}.

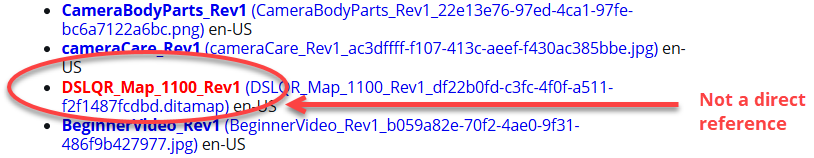

      In the example report above, the component that was selected (Chapter1_Charge your battery) is a branch.

      • Chapter1_Charge your battery. Shown in the Components browser with a black branch. This means it is the source component for a branch. (Chapter1_Charge your battery_IconCheck)

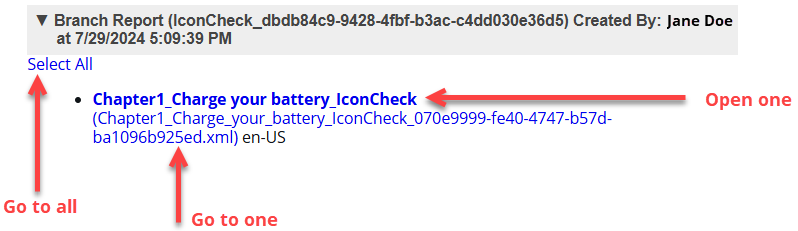

      Go to all. If you want to open the folder that contains all the components listed in a section of the report, click the Select All link.

      • If you click this link from an email, a browser tab opens, and Inspire opens to the Components browser.
      • If you click this link from a notification inside of Inspire, the Components browser opens.
      • In the browser, you see all of the components highlighted from that section of the report.
      • If the components are in different folders, you see the items from the first folder listed in the Folders pane.
      • The components are also listed in the Selected Components pane.

      Open one. If the component's content needs to be updated, you can click on the component Name, which is a link that opens the component in the Oxygen editor.

      • The Name is listed first.
      • The Name does not contain the file extension. For example, "Chapter1_Charge your battery_IconCheck".
      • If the component is locked or a binary, you see the component in a read-only viewer.

      Go to one. If you need to update a component using a system function, such as Rename, you can click on the File Name which is a link that opens the folder where it's stored.

        • The File Name is listed second, after the shorter Name and in parenthesis ().
        • The File Name contains the file extension. For example, "Chapter1_Charge_your_battery_IconCheck_070e9999-fe40-4747-b57d-ba1096b925ed.xml"
